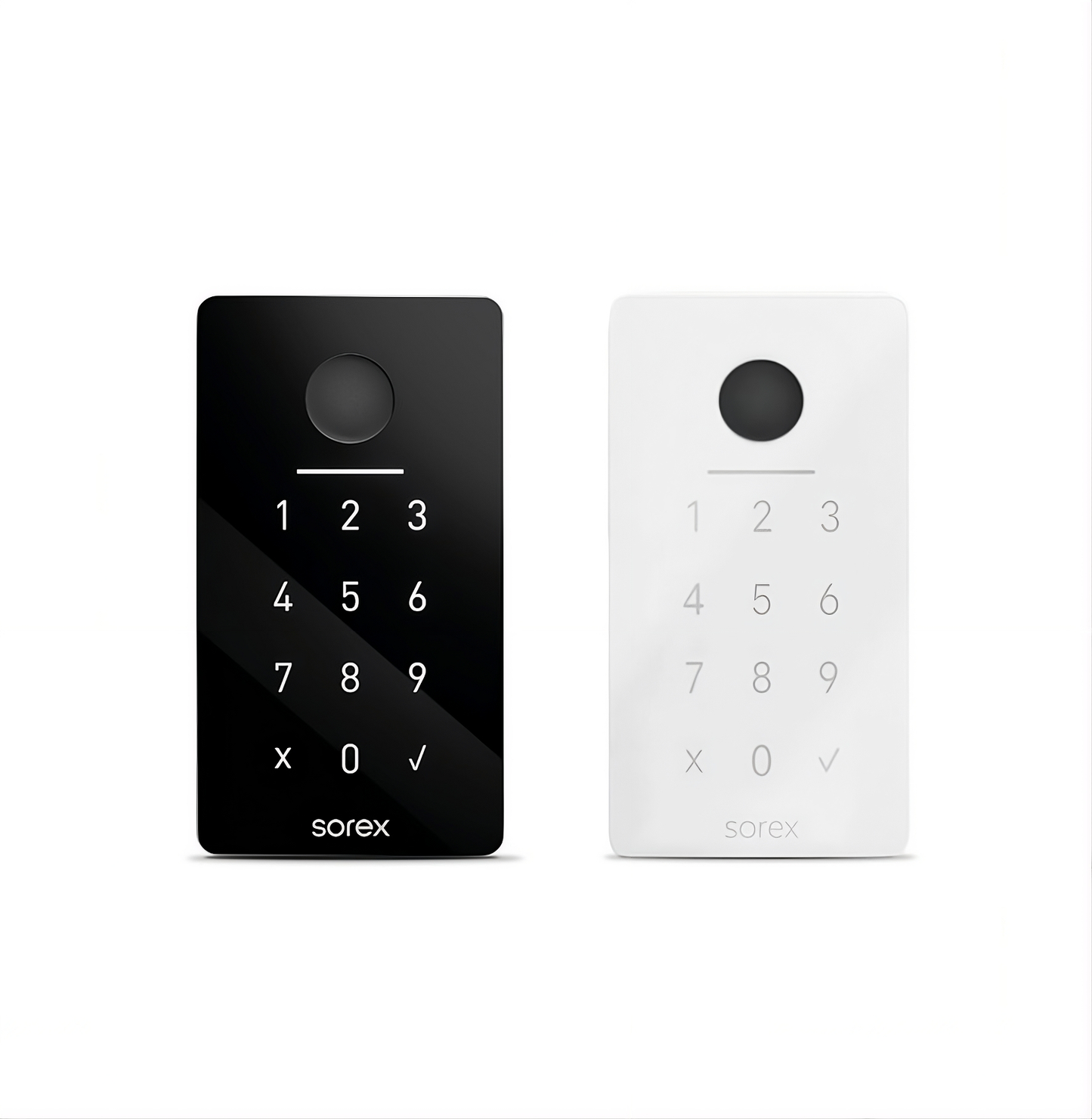

smart unilock
smart unilock
smart unilock
smart unilock
smart unilock

smart unilock

smart unilock

€550,00 incl. 20% VAT
€550,00 inkl. 20% UST
On Stock
Delivery 3-5 working days (depending on destination country)
View full details

Product Check

  • Seamless and flexible integration

    The smart unilock can be installed directly in the door leaf or in the masonry.

  • Access media even after power failure

    Even after a power failure, all access media remain in the smart unilock.

  • Initial setup possible without WLAN

    The initial setup can easily be done without WiFi, as WiFi is often only available later.

  • Can be used individually for many doors

    For convenient control of revolving doors, door openers, gates and barriers.

  • Intuitive access control via app

    Our app makes your everyday life easier: create access at the touch of a button, limit it by time and much more.

Perfect for businesses and private households
 No matter whether it is a large office or residential complex, holiday homes or hotels or your own home. The smart Unilock can be used individually and offers extensive options that make life easier. It also has an open API and can therefore be integrated into your own building technology with little programming effort. It is also compatible with TT Hotel Software. Opening media such as key cards can operate several smart access technologies from sorex.

Versatile solution for optimal access
 The smart unilock offers numerous options for openings, installations, functions in the app and extensive accessories. Regardless of whether it is for private or business applications - the smart unilock adapts to individual needs and is the flexible and reliable solution for the access area.

Opening options
 This key pad includes up to 4 different opening options. These include opening via mobile app, fingerprint, code or RFID technology. Even in the event of a power failure, the entered data remains saved and does not need to be entered again.

Safety is a top priority
 The smart unilock has been specially developed to ensure the highest level of security. The external relay unit, which is coupled with the key pad, as well as the AES 128-bit encryption offer comprehensive sabotage protection and security. In addition, we strongly recommend that you install it in such a way that the external relay unit is not accessible from the outside. This prevents the exchange of the two relay units from opening the door and increases the security of your smart unilock system.

Assembly
 The included and pre-attached 3M adhesive strips (type 5604A) enable easy installation of the smart unilock+. Thanks to Bluetooth technology, the initial setup can also be carried out without WiFi. This is usually only available at a later date on construction sites and would therefore pose a problem. In addition, we also offer ready-made Y-cables in our accessories, which make wiring even easier. In any case, we strongly recommend hiring a professional due to the wiring and integration into the door leaf or wall.

For professional installation, please contact the door manufacturer of your choice, who will create the system and functionality with the electric motor lock, the milling of the door, the cable laying and the electrical connection.

More flexibility with the sorex netGateway
With the sorex netGateway you can conveniently open and manage your door remotely using the app. It is installed near the door lock. It can be managed using the sorex smartlock app.

Alarm system through door sensor
Thanks to the sorex door sensor, your cylinder becomes a reliable alarm system. An app sends a notification to your cell phone if the door is not locked. The door sensor is managed via the sorex smartlock app. The sorex netGateway is required for this.

Convenient access via remote door opener
With the remote door opener you can open your door at the touch of a button from a range of up to ~10 meters using Bluetooth technology. The remote control is managed in the sorex smartlock app.

RFID Writer
The smart WiFi card programming device enables the creation of RFID media via the PC. The device only needs to be connected to the PC via USB. Of course, sorex also offers RFID chips or key chains for your door handle.

Y-cable for easier wiring
The specially developed Y-cable for GU, ROTO, WINKHAUS and MAKO motor locks shortens the installation time immensely and enables error-free cabling.

Item number DO502000
EAN 0093149093880
Special feature external relay cable (indoor unit) for sabotage protection
Encryption indoor and outdoor unit AES 128Bit
Frequency 2.4GHz
IP protection class IP66 (if waterproof glued)
Temperature range -30° to 60°C
Power supply 12/24V DC, min 0.5A
Effective power consumption in idle mode ~600μA
Relay 1A/250V switching current/switching voltage
Compatibility With all common motor locks (KFV, ROTO, GU, Fuhr, Wilka, Dom, ...)
Storage of access media Permanent (even when changing batteries)
Number of media 100 fingerprints
150 number codes
1000 RFID media
unlimited eKeys
Size Article width: 55 mm
Item length: 100 mm
Item height: 20 mm
Weight Total item weight: 205 g
Net item weight: Unilock 69 g
Unilock incl. external relay unit + screw terminal 121 g

Unilock outdoor unit, Unilock indoor/relay unit and pluggable screw terminal for connection to electric door opener and power supply, connection cable between outdoor and indoor unit, (optional) 3m extension cable
